Key Features
7" Touchscreen LCD
1920 x 1136 Resolution
For RED DSMC2/DSMC Cameras
170° Viewing Angle
Side-Mounted Navigation Buttons
350 cd/m² Brightness, 1000:1 Contrast
Includes RED ARM & 18" LEMO-Type Cable

The lightweight RED PRO Touch 7" LCD from RED DIGITAL CINEMA is a high-resolution touchscreen onboard monitor compatible with DSMC2 and DSMC cameras. Bright enough for viewing in high ambient light settings, this monitor features 1920 x 1136 resolution, a high 323 ppi density, a 350 cd/m² brightness level, and a contrast ratio of 1000:1. Its 85° off-angle viewing on all axes means you needn't be directly aligned with the viewfinder to see an optimal image. Navigate the RED PRO Touch via its robust, optically bonded touchscreen or its side-mounted buttons.

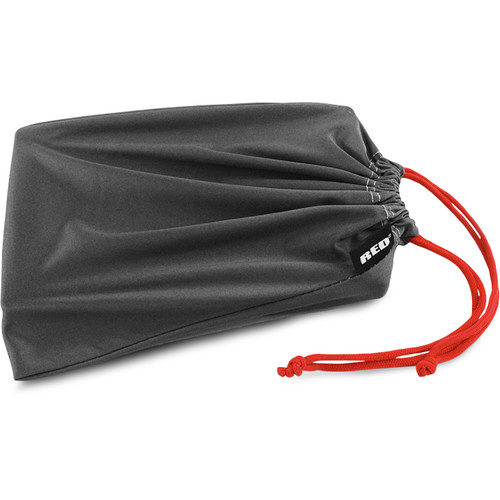

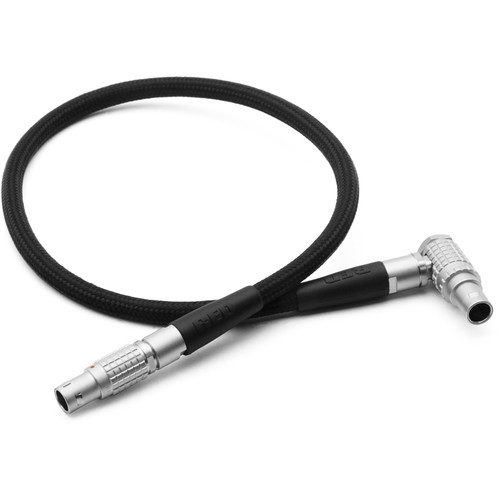

A LEMO-type connector enables the RED PRO Touch LCD to connect to RED DSMC2 and DSMC cameras and suits it for remote viewing on cranes, gimbals, etc. Use a DSMC2 LEMO Adapter A with the PRO Touch for convenient mounting options away from your DSMC2 camera BRAIN. An 18" LCD cable with both a straight and 90° connector, a 9" RED ARM, and a carrying pouch are included with the RED PRO Touch 7" LCD monitor.
Features
High-resolution, robust 1920 x 1136 touchscreen display with 1000:1 contrast ratio
350 cd/m² brightness level, and 170° off-angle, all-axes viewing
Robust, optically bonded touchscreen
Touchscreen and side-mounted button navigation

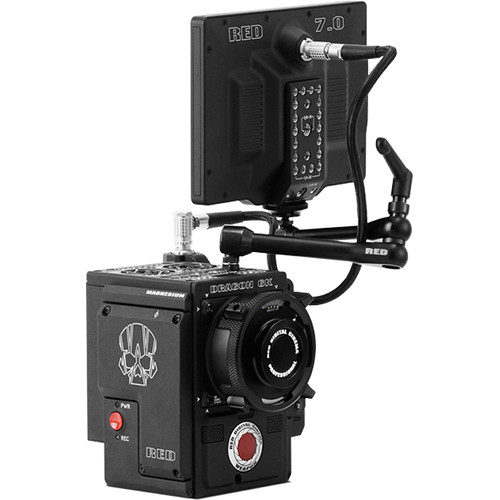

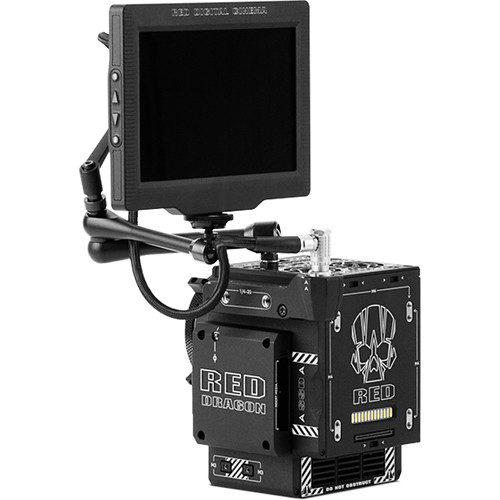

Mounts to RED DSMC2 and DSMC cameras with the included RED ARM
Includes one 18" LEMO-type cable
